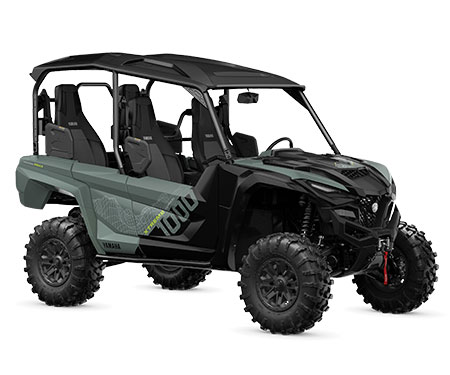

YAMAHA WOLVERINE RMAX4 XT-R COMPACT MY26

Description

YAMAHA WOLVERINE RMAX4 XT-R COMPACT MY26

The Yamaha Wolverine RMAX4 1000 XT-R Compact is a high-performance four-seat side-by-side engineered to deliver exceptional capability, comfort, and control across extreme off-road terrain. Designed to access tight trails while accommodating up to four occupants, it combines compact agility with powerful performance and premium features.

Powered by a 999cc liquid-cooled, DOHC parallel twin engine, the RMAX4 1000 XT-R Compact produces strong, responsive power with smooth delivery across the rev range. The advanced D-Mode system offers three selectable drive modes—Sport, Trail, and Crawl—allowing riders to tailor throttle response and performance to suit varying terrain conditions.

Yamaha’s Ultramatic® transmission system ensures smooth and durable power transfer, featuring a centrifugal clutch design that reduces wear and provides consistent engine braking for enhanced control. The On-Command® drivetrain allows seamless switching between 2WD, 4WD, and full differential lock, delivering maximum traction and adaptability in challenging environments.

Built for demanding conditions, the RMAX4 1000 XT-R Compact features long-travel suspension with high-performance FOX 2.0 QS3 shocks, providing excellent stability, control, and ride comfort over rough terrain. Its robust chassis is complemented by aggressive off-road tyres, a factory-fitted winch, and durable XT-R styling components designed for both functionality and appearance.

Inside, the automotive-inspired cabin offers a refined and spacious layout with seating for four, delivering comfort and confidence for extended rides. The compact design allows for improved manoeuvrability in tight environments while maintaining the strength and capability expected from a full-size off-road vehicle.

Key Specifications

Engine & Performance

• Engine Type: Liquid-cooled, 4-stroke, DOHC, parallel twin
• Displacement: 999cc
• Bore x Stroke: 93.0 x 73.5 mm
• Compression Ratio: 11.2:1
• Fuel System: Fuel Injection
• Ignition: TCI
• Starter: Electric
• Lubrication: Dry sump

Transmission & Drivetrain

• Transmission: Ultramatic® V-belt CVT
• Drive System: On-Command® 2WD / 4WD / Diff-lock
• Final Transmission: 3-way locking differential

Dimensions & Capacity

• Fuel Capacity: 34.8 L
